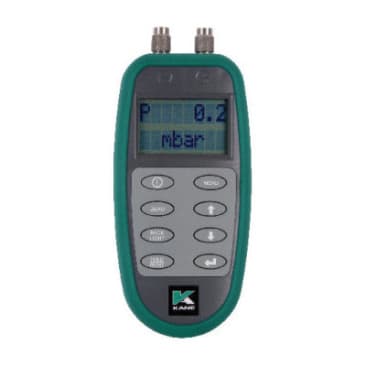

KANE KANE3500-5 5PSI DIGITAL LOGGING MANOMETER
MFR Part #:Â KANE3500-5
SKU #:Â 1689223
Brand:Â Kane
UEi TEST INSTRUMENTS™ 3500 Series KANE3500-5 High Accuracy Differential Pressure Meter, 400 mbar Measuring Range
Lifetime
CE Marked
Product Details
Attributes
Features
Resources
UEi TEST INSTRUMENTS™ High Accuracy Differential Pressure Meter, 3500 Series, 400 mbar Measuring, +/-5 hPa, +/-0.1 hPa Accuracy, Battery, Alkaline Battery, 1 Pa, 0.1 hPa Resolution, 10 to 90% RH Non-Condensing Humidity Rating, 0 to 45 deg C, 160 mm H x 80 mm W x 40 mm D
High Accuracy Differential Pressure Meter (+/- 5 psi / 400 mbar) All KANE3500 models are temperature compensated to minimise the "drift" in readings which can occur when electronic manometers are subject to temperature changes, e.g. when taken from a cold van into a warm building. All models have an infra-red output to an optional printer (KMIRP). Live', 'held' and 'logged' readings can be printed. Printouts include date, time and a 'header' which can be set by the user.
Accuracy:+/-5 hPa, +/-0.1 hPa
Battery Type:Alkaline
Dimensions:160 mm H x 80 mm W x 40 mm D
Humidity Rating:10 to 90% RH Non-Condensing
Measuring Range:400 mbar
Resolution:1 Pa, 0.1 hPa
Series:3500 Series
Temperature Rating:0 to 45 deg C
Power Source:Battery
- 4 versions available - see table for specifications
- Temperature compensated for superior accuracy
- Switchable between high & low resolution
- Switchable between: mbar, Pa, hPa, kPa, mmHg, mmH2O, inH2O & PSI
- Data hold & max / min recording
- Backed by KANE CARE - We promise to never let you down or your money back
Product Details
UEi TEST INSTRUMENTS™ High Accuracy Differential Pressure Meter, 3500 Series, 400 mbar Measuring, +/-5 hPa, +/-0.1 hPa Accuracy, Battery, Alkaline Battery, 1 Pa, 0.1 hPa Resolution, 10 to 90% RH Non-Condensing Humidity Rating, 0 to 45 deg C, 160 mm H x 80 mm W x 40 mm D
High Accuracy Differential Pressure Meter (+/- 5 psi / 400 mbar) All KANE3500 models are temperature compensated to minimise the "drift" in readings which can occur when electronic manometers are subject to temperature changes, e.g. when taken from a cold van into a warm building. All models have an infra-red output to an optional printer (KMIRP). Live', 'held' and 'logged' readings can be printed. Printouts include date, time and a 'header' which can be set by the user.
Attributes
Accuracy:Â +/-5 hPa, +/-0.1 hPa
Battery Type:Â Alkaline
Dimensions:Â 160 mm H x 80 mm W x 40 mm D
Humidity Rating:Â 10 to 90% RH Non-Condensing
Measuring Range:Â 400 mbar
Resolution:Â 1 Pa, 0.1 hPa
Series:Â 3500 Series
Temperature Rating:Â 0 to 45 deg C
Power Source:Â Battery
Features
- 4 versions available - see table for specifications
- Temperature compensated for superior accuracy
- Switchable between high & low resolution
- Switchable between: mbar, Pa, hPa, kPa, mmHg, mmH2O, inH2O & PSI
- Data hold & max / min recording
- Backed by KANE CARE - We promise to never let you down or your money back
