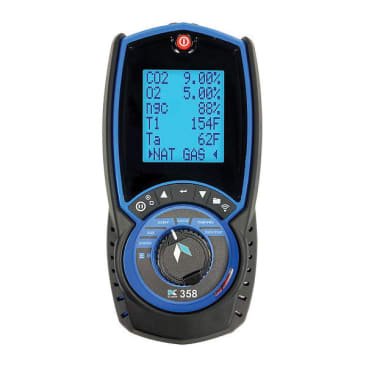

KANE KANE358 FLUE GAS COMBUSTION ANALYZER
MFR Part #:Â KANE358
SKU #:Â 1689284
Brand:Â Kane
UEi TEST INSTRUMENTS™ KANE358 Flue Gas Analyzer, Bio Oil, Heavy Oil, LPG, Light Oil, Natural Gas, Propane, Pellets Fuel
6 Year
(3) AA Rechargeable Batteries, WIR00067 USB Charging Cable, Quick Start Guide Manual, CP2 Probe, (2) ATT29 K-Type Thermocouples, 11000 Tubing with Connector, 17631 Particle Filter and AC509 Carry Case
Residential and Commercial Applications
BimSchV Certified|EN 50379|TUV Approved
Product Details
Attributes
Features
Resources
UEi TEST INSTRUMENTS™ Flue Gas Analyzer, Bio Oil, Heavy Oil, LPG, Light Oil, Natural Gas, Propane, Pellets Fuel, Backlit Display, Battery, 32 to 1112 deg F Flue Temperature and Inlet Temperature (External Sensor), 32 to 112 deg F Inlet Temperature (Internal Sensor), 0 to 2000 ppm Carbon Monoxide, 0 to 20% Carbon Dioxide, 2000 to 10000 ppm Optional H2 Compensated, 0 to 21% Oxygen, 0 to 99.9% Efficiency (Net or Gross), 0 to 119.9% Excess Air Measuring, +/-1.0 deg F Flue Temperature and Inlet Temperature (External Sensor), +/-2 deg F Inlet Temperature (Internal Sensor), +/-3 ppm or +/-5 ppm Carbon Monoxide, +/-0.3 Carbon Dioxide, +/-10% Reading Optional H2 Compensated, +/-0.3% Oxygen, +/-1% Reading Efficiency (Net or Gross), +/-0.2% Reading Excess Air Accuracy, 0.1 deg F, 1 ppm, 0.1% Resolution, >8 hr Battery Life, 15 to 90% Relative Humidity Rating, 32 to 113 deg F, 8.54 in H x 4.18 in W x 1.86 in D, Additional Information: AA Battery Size
Additional Information:AA Battery Size
Battery Life:>8 hr
Dimensions:8.54 in H x 4.18 in W x 1.86 in D
Display Type:Backlit
Fuel Type:Bio Oil, Heavy Oil, LPG, Light Oil, Natural Gas, Propane, Pellets
Humidity Rating:15 to 90% Relative
Power Supply:Battery
Resolution:0.1 deg F, 1 ppm, 0.1%
Temperature Rating:32 to 113 deg F
- Up to 6-Year warranty with annual recertification
- Differential Pressure
- 3 types of sensor protection
- Over-range protection pump
- NOx filtered CO sensor
- Low Flow Detection
- Large 6-line backlit display
- Temperature Differential w/ K-Type probe inputs
- Protective water trap
Product Details
UEi TEST INSTRUMENTS™ Flue Gas Analyzer, Bio Oil, Heavy Oil, LPG, Light Oil, Natural Gas, Propane, Pellets Fuel, Backlit Display, Battery, 32 to 1112 deg F Flue Temperature and Inlet Temperature (External Sensor), 32 to 112 deg F Inlet Temperature (Internal Sensor), 0 to 2000 ppm Carbon Monoxide, 0 to 20% Carbon Dioxide, 2000 to 10000 ppm Optional H2 Compensated, 0 to 21% Oxygen, 0 to 99.9% Efficiency (Net or Gross), 0 to 119.9% Excess Air Measuring, +/-1.0 deg F Flue Temperature and Inlet Temperature (External Sensor), +/-2 deg F Inlet Temperature (Internal Sensor), +/-3 ppm or +/-5 ppm Carbon Monoxide, +/-0.3 Carbon Dioxide, +/-10% Reading Optional H2 Compensated, +/-0.3% Oxygen, +/-1% Reading Efficiency (Net or Gross), +/-0.2% Reading Excess Air Accuracy, 0.1 deg F, 1 ppm, 0.1% Resolution, >8 hr Battery Life, 15 to 90% Relative Humidity Rating, 32 to 113 deg F, 8.54 in H x 4.18 in W x 1.86 in D, Additional Information: AA Battery Size
Attributes
Additional Information:Â AA Battery Size
Battery Life:Â >8 hr
Dimensions:Â 8.54 in H x 4.18 in W x 1.86 in D
Display Type:Â Backlit
Fuel Type:Â Bio Oil, Heavy Oil, LPG, Light Oil, Natural Gas, Propane, Pellets
Humidity Rating:Â 15 to 90% Relative
Power Supply:Â Battery
Resolution:Â 0.1 deg F, 1 ppm, 0.1%
Temperature Rating:Â 32 to 113 deg F
Features
- Up to 6-Year warranty with annual recertification
- Differential Pressure
- 3 types of sensor protection
- Over-range protection pump
- NOx filtered CO sensor
- Low Flow Detection
- Large 6-line backlit display
- Temperature Differential w/ K-Type probe inputs
- Protective water trap
