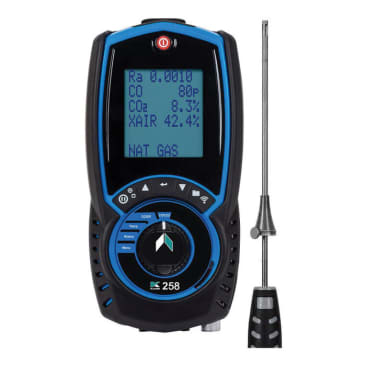

KANE KANE258 FLUE GAS COMBUSTION ANALYZER
MFR Part #:Â KANE258
SKU #:Â 1689283
Brand:Â Kane
UEi TEST INSTRUMENTS™ KANE258 Combustion Analyzer, Butane, LPG, Light Oil, Natural Gas, Propane, Wood Pellets Fuel
6 Year
(3) AA Rechargeable Batteries, WIR00067 USB Charging Cable and Quick Start Guide Manual
Residential Applications
BimSchV Certified|EN 50379|TUV Approved
Product Details
Attributes
Features
Resources
UEi TEST INSTRUMENTS™ Combustion Analyzer, Butane, LPG, Light Oil, Natural Gas, Propane, Wood Pellets Fuel, Battery, 32 to 1112 deg F Flue Temperature and Inlet Temperature (External Sensor), 32 to 112 deg F Inlet Temperature (Internal Sensor), 0 to 2000 ppm Carbon Monoxide, 0 to 20% Carbon Dioxide, 0 to 21% Oxygen, 0 to 99.9% Efficiency (Net or Gross), 0 to 119.9% Excess Air Measuring, +/-1.0 deg F Flue Temperature and Inlet Temperature (External Sensor), +/-2 deg F Inlet Temperature (Internal Sensor), +/-3 ppm or +/-5 ppm Carbon Monoxide, +/-0.3 Carbon Dioxide, +/-0.3% Oxygen, +/-1% Reading Efficiency (Net or Gross), +/-0.2% Reading Excess Air Accuracy, 0.1 deg F, 1 ppm, 0.1% Resolution, >8 hr Battery Life, 15 to 90% Relative Humidity Rating, 32 to 113 deg F, 8.54 in H x 4.18 in W x 1.86 in D, Additional Information: AA Battery Size
Additional Information:AA Battery Size
Battery Life:>8 hr
Dimensions:8.54 in H x 4.18 in W x 1.86 in D
Fuel Type:Butane, LPG, Light Oil, Natural Gas, Propane, Wood Pellets
Humidity Rating:15 to 90% Relative
Power Supply:Battery
Resolution:0.1 deg F, 1 ppm, 0.1%
Temperature Rating:32 to 113 deg F
- Large 6 line display
- EOS Technology
- NOx Filtered
- Water Trap Indication
- High Altitude Compensation
- Up to 6 year warranty with annual recertification
- Measures: Flue temperature, Inlet temperature (Internal & External Sensor), CO, CO2
- Calculates: O2, CO/CO2, Efficiency (Nett or Gross), Excess Air, Losses
- Low flow detection
- FUEL TYPES: Natural Gas, Butane, LPG, Light oil, Wood pellets, Propane
- Hydrogen (H2 ) ready - up to 20% blend
Product Details
UEi TEST INSTRUMENTS™ Combustion Analyzer, Butane, LPG, Light Oil, Natural Gas, Propane, Wood Pellets Fuel, Battery, 32 to 1112 deg F Flue Temperature and Inlet Temperature (External Sensor), 32 to 112 deg F Inlet Temperature (Internal Sensor), 0 to 2000 ppm Carbon Monoxide, 0 to 20% Carbon Dioxide, 0 to 21% Oxygen, 0 to 99.9% Efficiency (Net or Gross), 0 to 119.9% Excess Air Measuring, +/-1.0 deg F Flue Temperature and Inlet Temperature (External Sensor), +/-2 deg F Inlet Temperature (Internal Sensor), +/-3 ppm or +/-5 ppm Carbon Monoxide, +/-0.3 Carbon Dioxide, +/-0.3% Oxygen, +/-1% Reading Efficiency (Net or Gross), +/-0.2% Reading Excess Air Accuracy, 0.1 deg F, 1 ppm, 0.1% Resolution, >8 hr Battery Life, 15 to 90% Relative Humidity Rating, 32 to 113 deg F, 8.54 in H x 4.18 in W x 1.86 in D, Additional Information: AA Battery Size
Attributes
Additional Information:Â AA Battery Size
Battery Life:Â >8 hr
Dimensions:Â 8.54 in H x 4.18 in W x 1.86 in D
Fuel Type:Â Butane, LPG, Light Oil, Natural Gas, Propane, Wood Pellets
Humidity Rating:Â 15 to 90% Relative
Power Supply:Â Battery
Resolution:Â 0.1 deg F, 1 ppm, 0.1%
Temperature Rating:Â 32 to 113 deg F
Features
- Large 6 line display
- EOS Technology
- NOx Filtered
- Water Trap Indication
- High Altitude Compensation
- Up to 6 year warranty with annual recertification
- Measures: Flue temperature, Inlet temperature (Internal & External Sensor), CO, CO2
- Calculates: O2, CO/CO2, Efficiency (Nett or Gross), Excess Air, Losses
- Low flow detection
- FUEL TYPES: Natural Gas, Butane, LPG, Light oil, Wood pellets, Propane
- Hydrogen (H2 ) ready - up to 20% blend
