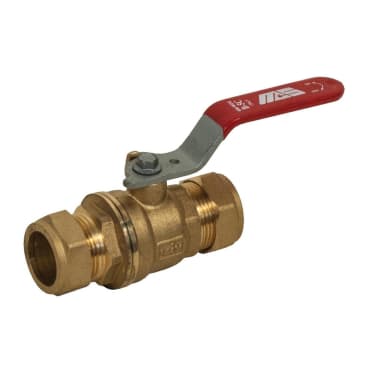

MAS 013-55500 B-5C-LF 1/2IN COMP FULL PORT BRASS BALL VALVE
MFR Part #: 013-55500
SKU #: 1688978
Brand: MAS™
MAS™ B Series 013-55500 Ball Valve, 1/2 in, Compression, Brass, 500 psi
3 Year
NSF/ANSI 372/61
Product Details
Attributes
Features
Resources
MAS™ Ball Valve, B Series, 1/2 in Nominal, Compression Connection, Full Port, 500 psi, 2.95 in Inlet to Outlet Length, 1.77 in Top to Inlet Center, 1 Handles, Lever Operator, 15 Cv Flow Coefficient (Cv), Material Standard: ASTM B283 C37700, ASTM B124 C37700, ASTM B124 C37700, ASTM A36, Brass Body, PTFE Seat, Brass Stem, Steel Handle, Brass Ball, NBR Softgoods, 200 deg F, 0.65 in Dia, Domestic/Import: Import
M.A. Stewart & Sons Ltd. (MAS) has developed a full line of private label "MAS" valves, including Brass, Bronze, Carbon, Low Alloy and Stainless Steel Ball and Butterfly valves. Special options include NACE, API 607 Firesafe, ASME B16.34, CSA, NSF in NPT & solder, as well socket weld, butt-weld & flanged end connections for industrial applications.
Connection Type:Compression
Inlet to Outlet Length:2.95 in
Nominal Size:1/2 in
Operator Type:Lever
Pressure Rating:500 psi
Ball Material:Brass
Body Material:Brass
Dimensions:0.65 in Dia
Domestic/Import:Import
Flow Coefficient (Cv):15 Cv
Handle Material:Steel
Material Standard:ASTM B283 C37700, ASTM B124 C37700, ASTM B124 C37700, ASTM A36
Number of Handles:1
Port Type:Full
Seat Material:PTFE
Series:B Series
Softgoods Material:NBR
Stem Material:Brass
Temperature Rating:200 deg F
Top to Inlet Center:1.77 in
- Forged 2 piece construction
- Full port
- Compression ends for use with type K L & M copper tube
- Blowout-proof stem
- Chrome plated ball
- Class 150, 600 WOG (1/2" & 3/4") 500 WOG (1")
Product Details
MAS™ Ball Valve, B Series, 1/2 in Nominal, Compression Connection, Full Port, 500 psi, 2.95 in Inlet to Outlet Length, 1.77 in Top to Inlet Center, 1 Handles, Lever Operator, 15 Cv Flow Coefficient (Cv), Material Standard: ASTM B283 C37700, ASTM B124 C37700, ASTM B124 C37700, ASTM A36, Brass Body, PTFE Seat, Brass Stem, Steel Handle, Brass Ball, NBR Softgoods, 200 deg F, 0.65 in Dia, Domestic/Import: Import
M.A. Stewart & Sons Ltd. (MAS) has developed a full line of private label "MAS" valves, including Brass, Bronze, Carbon, Low Alloy and Stainless Steel Ball and Butterfly valves. Special options include NACE, API 607 Firesafe, ASME B16.34, CSA, NSF in NPT & solder, as well socket weld, butt-weld & flanged end connections for industrial applications.
Attributes
Connection Type: Compression
Inlet to Outlet Length: 2.95 in
Nominal Size: 1/2 in
Operator Type: Lever
Pressure Rating: 500 psi
Ball Material: Brass
Body Material: Brass
Dimensions: 0.65 in Dia
Domestic/Import: Import
Flow Coefficient (Cv): 15 Cv
Handle Material: Steel
Material Standard: ASTM B283 C37700, ASTM B124 C37700, ASTM B124 C37700, ASTM A36
Number of Handles: 1
Port Type: Full
Seat Material: PTFE
Series: B Series
Softgoods Material: NBR
Stem Material: Brass
Temperature Rating: 200 deg F
Top to Inlet Center: 1.77 in
Features
- Forged 2 piece construction
- Full port
- Compression ends for use with type K L & M copper tube
- Blowout-proof stem
- Chrome plated ball
- Class 150, 600 WOG (1/2" & 3/4") 500 WOG (1")
