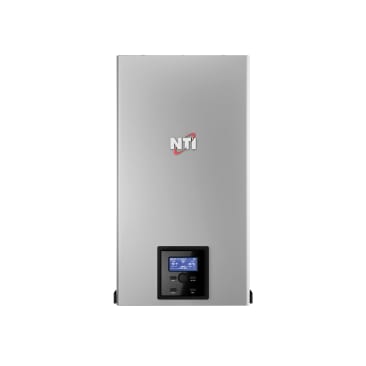

NTI 3260098 TRX199 197MBH TRX CONDENSING GAS BOILER
MFR Part #:Â TRX199
SKU #:Â 1308747
Brand:Â NTI
UPC:Â 628233731685
Please note this item is discontinued (order fulfillment will depend on stock availability): NTI TRX II Series TRX199 High Efficiency Condensing Gas Boiler, 95 % AFUE, 197000 Btu/hr BTU, 2.7 gal Capacity, 120 VAC
Limited
For indirect domestic hot water applications
AHRI Certified|ANSI Z21.13 Specified|ASTM SA-312 Specified|cCSAus Certified|CSA 4.9 Certified|ENERGY STAR Certified
Product Details
Attributes
Features
Resources
NTI High Efficiency Condensing Gas Boiler, TRX II Series, 120 VAC, 12 A, 60 Hz, 1 ph Phase, 95 % AFUE Rating, 197000 Btu/hr, 2.7 gal Capacity, 2 gpm Flow Rate, 55 psi, 3/4 in MNPT Gas, 1-1/4 in MNPT Water Connection, Liquid Propane Gas, Natural Gas Fuel, Exhaust Vent, Modulation Burner, Chimney/Breeching/Vent Size: 3 in, 184 mbh DOE Heating Capacity, 1 in Flue Outlet, Direct Spark Ignition, 160 mbh Net IBR, Wall Mounting, 304L Stainless Steel, Finish: Galvanized/Painted, 33 to 104 deg F, 37-1/2 in H x 19-7/8 in W x 18 in D, Additional Information: Non-Combi Model, 3/4 in Gas Connection Size, 3/4 in Water Connection Size
The TRX Series II is a high-efficiency, wall-hung boiler equipped with an Innovative XTRATECH® stainless steel heat exchanger with large diameter tubing. Experience the future of simplicity with TRX Series II, featuring a user interface that's been reimagined for efficiency and ease of use. Every unit is equipped with embedded Wi-Fi connectivity so that the TRX control can easily communicate with NTI remote connectivity tools, making servicing easier. All internal components utilize bayonet quick connectors, eliminating the need to braze or solder within the unit. Swing down control box greatly enhances serviceability, making all major components easily accessible.
Additional Information:Non-Combi Model, 3/4 in Gas Connection Size, 3/4 in Water Connection Size
AFUE Rating:95 %
Amperage Rating:12 A
BTU Rating:197000 Btu/hr
Burner Type:Modulation
Capacity:2.7 gal
Chimney/Breeching/Vent Size:3 in
Clearance Items:Clearance
Connection Type:3/4 in MNPT Gas, 1-1/4 in MNPT Water
Dimensions:37-1/2 in H x 19-7/8 in W x 18 in D
DOE Heating Capacity:184 mbh
Finish:Galvanized/Painted
Flow Rate:2 gpm
Flue Outlet Size:1 in
Frequency Rating:60 Hz
Fuel Type:Liquid Propane Gas, Natural Gas
Ignition Type:Direct Spark
Material:304L Stainless Steel
Mounting Type:Wall
Net IBR Rating:160 mbh
Phase:1 ph
Pressure Rating:55 psi
Series:TRX II Series
Temperature Rating:33 to 104 deg F
Vent Type:Exhaust
Voltage Rating:120 VAC
- Models up to 96% AFUE
- Integrated ECM pump and DHW diverter valve on all models
- Internal diverter valve eliminates need for indirect pump
- Small zone valve systems may not require an additional pump or a low loss header
- Wi-Fi on board for remote control and monitoring
- Easy service access and quick component connections
- Innovative XTRATECH® stainless steel heat exchanger with large diameter tubing
- ASME H stamped boiler, designed and constructed in compliance with the ASME boiler and pressure vessel code section IV
- Certified as direct vent (sealed combustion) or for use with indoor combustion air
- Modulating combustion up to 11:1 ratio
- Zero clearance to combustibles (clearances required for service)
- Integral microprocessor safety control flame safeguard and temperature
- Sealed cabinet and high energy ignition transformer (spark ignition)
- Built-in water pressure bypass (guarantees minimum water flow)
- Low water pressure switch
- Integrated ECM boiler circulator
- Integrated 3-way valve (diverts between DHW and CH demands)
- On/off button and (2) 120 VAC outputs for external circulators (DHW/CH)
- DHW zone input (tank thermostat or sensor) and CH zone input x 2 (room sensor or end switch)
- Outdoor temperature sensor input and Wi-Fi remote connectivity embedded
Product Details
NTI High Efficiency Condensing Gas Boiler, TRX II Series, 120 VAC, 12 A, 60 Hz, 1 ph Phase, 95 % AFUE Rating, 197000 Btu/hr, 2.7 gal Capacity, 2 gpm Flow Rate, 55 psi, 3/4 in MNPT Gas, 1-1/4 in MNPT Water Connection, Liquid Propane Gas, Natural Gas Fuel, Exhaust Vent, Modulation Burner, Chimney/Breeching/Vent Size: 3 in, 184 mbh DOE Heating Capacity, 1 in Flue Outlet, Direct Spark Ignition, 160 mbh Net IBR, Wall Mounting, 304L Stainless Steel, Finish: Galvanized/Painted, 33 to 104 deg F, 37-1/2 in H x 19-7/8 in W x 18 in D, Additional Information: Non-Combi Model, 3/4 in Gas Connection Size, 3/4 in Water Connection Size
The TRX Series II is a high-efficiency, wall-hung boiler equipped with an Innovative XTRATECH® stainless steel heat exchanger with large diameter tubing. Experience the future of simplicity with TRX Series II, featuring a user interface that's been reimagined for efficiency and ease of use. Every unit is equipped with embedded Wi-Fi connectivity so that the TRX control can easily communicate with NTI remote connectivity tools, making servicing easier. All internal components utilize bayonet quick connectors, eliminating the need to braze or solder within the unit. Swing down control box greatly enhances serviceability, making all major components easily accessible.
Attributes
Additional Information:Â Non-Combi Model, 3/4 in Gas Connection Size, 3/4 in Water Connection Size
AFUE Rating:Â 95 %
Amperage Rating:Â 12 A
BTU Rating:Â 197000 Btu/hr
Burner Type:Â Modulation
Capacity:Â 2.7 gal
Chimney/Breeching/Vent Size:Â 3 in
Clearance Items:Â Clearance
Connection Type:Â 3/4 in MNPT Gas, 1-1/4 in MNPT Water
Dimensions:Â 37-1/2 in H x 19-7/8 in W x 18 in D
DOE Heating Capacity:Â 184 mbh
Finish:Â Galvanized/Painted
Flow Rate:Â 2 gpm
Flue Outlet Size:Â 1 in
Frequency Rating:Â 60 Hz
Fuel Type:Â Liquid Propane Gas, Natural Gas
Ignition Type:Â Direct Spark
Material:Â 304L Stainless Steel
Mounting Type:Â Wall
Net IBR Rating:Â 160 mbh
Phase:Â 1 ph
Pressure Rating:Â 55 psi
Series:Â TRX II Series
Temperature Rating:Â 33 to 104 deg F
Vent Type:Â Exhaust
Voltage Rating:Â 120 VAC
Features
- Models up to 96% AFUE
- Integrated ECM pump and DHW diverter valve on all models
- Internal diverter valve eliminates need for indirect pump
- Small zone valve systems may not require an additional pump or a low loss header
- Wi-Fi on board for remote control and monitoring
- Easy service access and quick component connections
- Innovative XTRATECH® stainless steel heat exchanger with large diameter tubing
- ASME H stamped boiler, designed and constructed in compliance with the ASME boiler and pressure vessel code section IV
- Certified as direct vent (sealed combustion) or for use with indoor combustion air
- Modulating combustion up to 11:1 ratio
- Zero clearance to combustibles (clearances required for service)
- Integral microprocessor safety control flame safeguard and temperature
- Sealed cabinet and high energy ignition transformer (spark ignition)
- Built-in water pressure bypass (guarantees minimum water flow)
- Low water pressure switch
- Integrated ECM boiler circulator
- Integrated 3-way valve (diverts between DHW and CH demands)
- On/off button and (2) 120 VAC outputs for external circulators (DHW/CH)
- DHW zone input (tank thermostat or sensor) and CH zone input x 2 (room sensor or end switch)
- Outdoor temperature sensor input and Wi-Fi remote connectivity embedded
