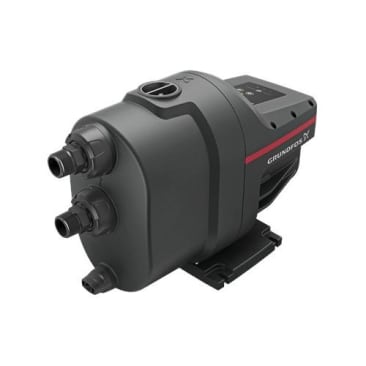

GRUNDFOS 99631742 SCALA1 3-45 CSA 1 X 115 V 60 HZ
MFR Part #:Â 99631742
SKU #:Â 1287847
Brand:Â Grundfos
Grundfos 99631742 Water Booster Pump, 26 gpm Flow Rate, 1 in NPT Inlet 1 in NPT Outlet, 115 V, 1 pH
ACS Approved|CE Certified|CSAus Certified|EAC Certified|UL Listed
Product Details
Attributes
Features
Grundfos, 99631742, Water Booster Pump, 26 gpm Flow Rate, 1 in NPT Inlet, 1 in NPT Outlet, 150.93 ft Maximum Head, 0.8 hp Power, 115 V, 8.62 A, 60 Hz Frequency, 1 ph, 25 psi Maximum, 3400 rpm Motor, Composite Impeller, 32 to 113 deg F, NEMA 5-15P Enclosure
The SCALA1 water pressure booster pump ensures a steady flow and constant water supply in the home. This all-in-one solution includes a sensor, controller, and check valve built into the pump. Powered by a high efficiency permanent magnet motor, the SCALA1 delivers top-notch performance while reducing energy consumption. It also allows for external inputs, accommodating various applications such as float switches for tank filling, inlet pressure switches, and moisture detection switches for irrigation.
Amperage Rating:8.62 A
Enclosure Type:NEMA 5-15P
Flow Rate:26 gpm
Frequency Rating:60 Hz
Impeller Type:Composite
Inlet Size:1 in NPT
Maximum Head:150.93 ft
Maximum Pressure:25 psi
Motor Speed:3400 rpm
Outlet Size:1 in NPT
Phase:1 ph
Power Rating:.8 hp
Temperature Rating:32 to 113 deg F
Voltage Rating:115 V
- High-efficiency booster pump with a permanent magnet motor (ECM) that helps reduce energy consumption
- Built in sensor to constantly measure and optimize for drops in pressure
- Dry run protection monitoring to automatically stop the pump in case of water shortage
- All-in-one solution; sensor, controller, check valve built into the pump
- Compact size allows for installations in a variety of spaces (small or large)
- Water flowing through the pump cools the motor to help it operating
- Self-priming pum ensures stable operation, even when the pump is not completely filled with water
- Aluminum construction combined with corrosion-resistant internal components
Product Details
Grundfos, 99631742, Water Booster Pump, 26 gpm Flow Rate, 1 in NPT Inlet, 1 in NPT Outlet, 150.93 ft Maximum Head, 0.8 hp Power, 115 V, 8.62 A, 60 Hz Frequency, 1 ph, 25 psi Maximum, 3400 rpm Motor, Composite Impeller, 32 to 113 deg F, NEMA 5-15P Enclosure
The SCALA1 water pressure booster pump ensures a steady flow and constant water supply in the home. This all-in-one solution includes a sensor, controller, and check valve built into the pump. Powered by a high efficiency permanent magnet motor, the SCALA1 delivers top-notch performance while reducing energy consumption. It also allows for external inputs, accommodating various applications such as float switches for tank filling, inlet pressure switches, and moisture detection switches for irrigation.
Attributes
Amperage Rating:Â 8.62 A
Enclosure Type:Â NEMA 5-15P
Flow Rate:Â 26 gpm
Frequency Rating:Â 60 Hz
Impeller Type:Â Composite
Inlet Size:Â 1 in NPT
Maximum Head:Â 150.93 ft
Maximum Pressure:Â 25 psi
Motor Speed:Â 3400 rpm
Outlet Size:Â 1 in NPT
Phase:Â 1 ph
Power Rating:Â .8 hp
Temperature Rating:Â 32 to 113 deg F
Voltage Rating:Â 115 V
Features
- High-efficiency booster pump with a permanent magnet motor (ECM) that helps reduce energy consumption
- Built in sensor to constantly measure and optimize for drops in pressure
- Dry run protection monitoring to automatically stop the pump in case of water shortage
- All-in-one solution; sensor, controller, check valve built into the pump
- Compact size allows for installations in a variety of spaces (small or large)
- Water flowing through the pump cools the motor to help it operating
- Self-priming pum ensures stable operation, even when the pump is not completely filled with water
- Aluminum construction combined with corrosion-resistant internal components
